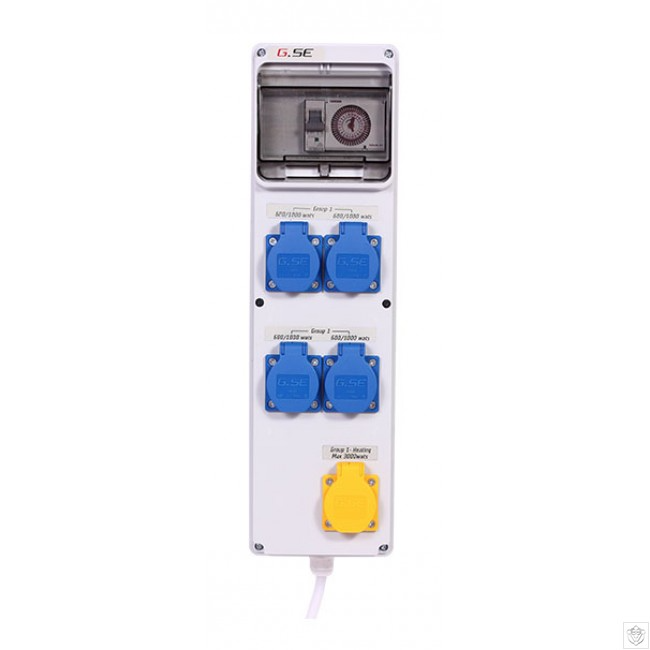

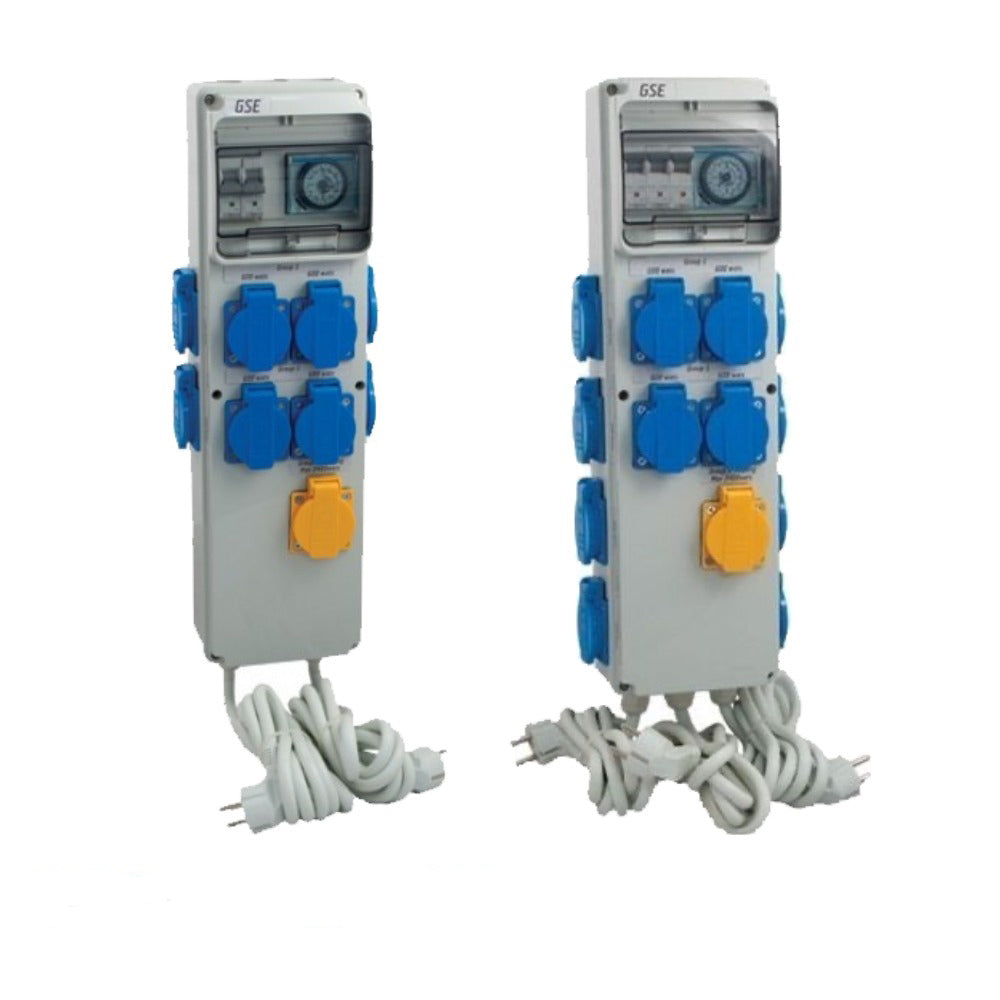

The timer III is built with high quality components such as Hager timer Germany and Iskra contactors Slowenia. A serious housing with cover and seal joint result a high protection class of IP44. On 1 safety breaker you can switch ON/OFF the power circuits.
The timer box III is used by several inductive loads such as high-pressure lamps with high switch on and off simultaneously. This turns on Contactor/Relay 4x600W loads. All model with heating socket is on when lights are off (power management).
Sizes and technical data's:
- Size: 500x160x115mm
- Voltage: AC 230V 50-60 Hz
- Power: 3800W full load (16A)
- Heating: up to 2400w (resistive loads)
- Mechanical timer: 24h auto/manual 15 min. switching time
- Relay mechanical endurance: 10000000 cycles
- Protection class: IP54
